Mini excavator / VantMech machinery

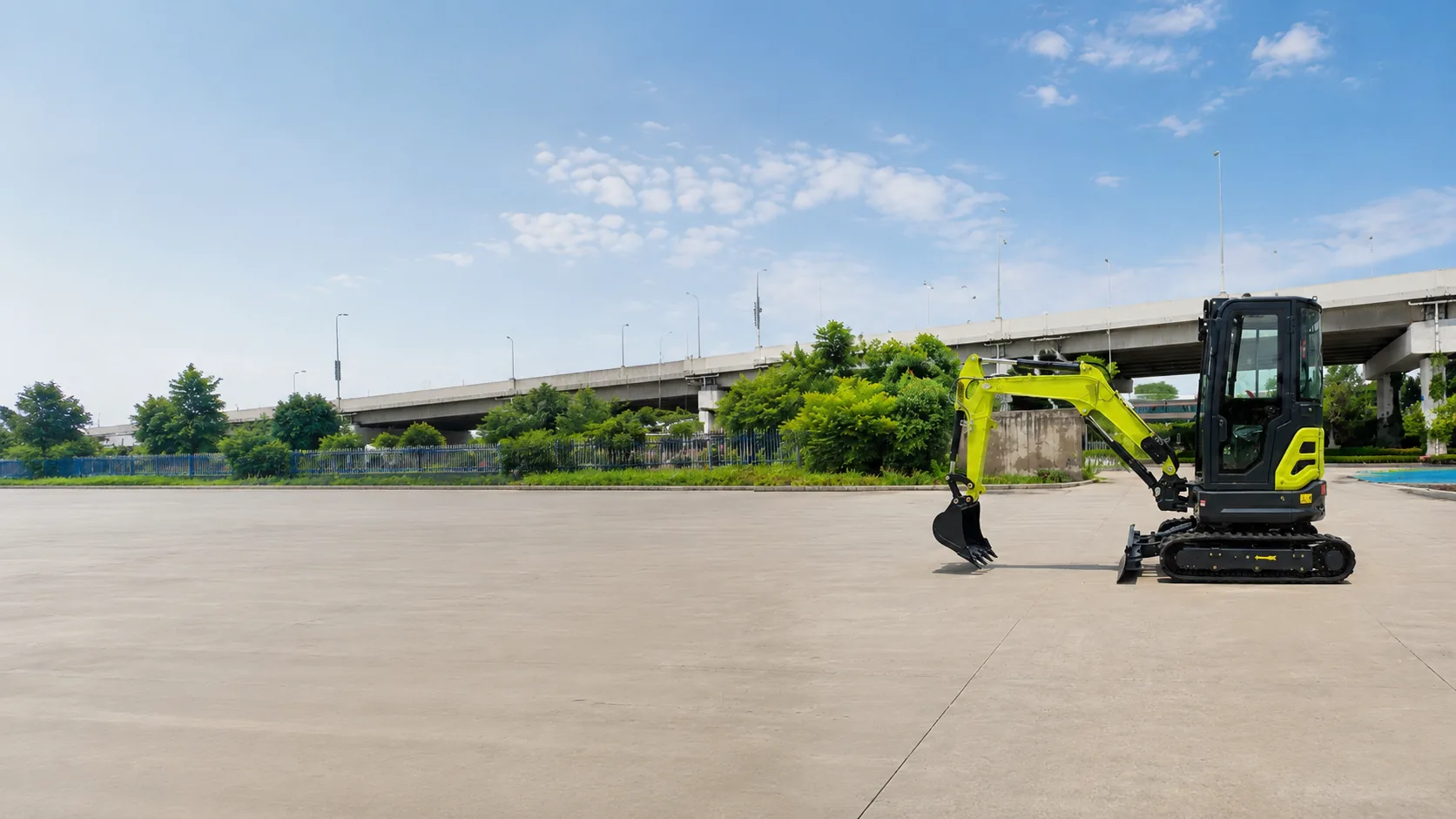

GW25 2.2 Ton Side Swing Excavator
GW25 is a 2200 kg compact excavator with YANMAR 3TNV80F engine, side swing, telescopic arm, variable piston pump, load-sensitive valve, two-speed piston travel motor, piston swing motor and 20 kN bucket digging force.
- YANMAR 3TNV80F engine
- Side swing and telescopic arm
- Variable piston pump and load-sensitive valve
- Piston travel and swing motors
- Stronger digging force
Final engine, dimensions and attachments are confirmed before quotation.
Compact machine. Real capability.
Built around the work you do.
GW25 is a 2200 kg compact excavator with YANMAR 3TNV80F engine, side swing, telescopic arm, variable piston pump, load-sensitive valve, two-speed piston travel motor, piston swing motor and 20 kN bucket digging force.
Know your machine
Technical specifications
| Model | GW25 |
| Engine | YANMAR 3TNV80F |
| Engine type | Three-cylinder direct injection |
| Displacement | 1.267 L |
| Rated power | 15.2 kW / 2500 rpm |
| Compliance / emission | EURO 5 / EPA 4 |
| Hydraulic pump | Variable piston pump |
| Hydraulic valve | Load-sensitive valve |
| Hydraulic pressure | 24.5 MPa |
| Hydraulic flow | 70 L/min |
| Travel motor | High / low speed piston motor |
| Swing motor | Piston motor |
| Machine weight | 2200 kg |
| Bucket capacity | 0.068 m³ |
| Arm digging force | 13.5 kN |
| Bucket digging force | 20 kN |
| Max. digging height | 4190 mm |
| Max. dumping height | 2880 mm |
| Max. digging depth | 2410 mm |
| Max. digging radius on ground | 4520 mm |
| Side swing angle | 50 deg right / 65 deg left |
| Track model | Rubber track 250*48*82 |
| Travel speed | 2.0 / 3.8 km/h |
| Traction force | 23 kN |
| Gradability | 30 deg |
| Max. rotation speed | 9.5 r/min |
| Overall length | 4100 mm |
| Overall width | 1300 / 1500 mm |
| Ground length | 1860 mm |
| Wooden box size | 3950*1420*1850 mm |
| With cabin box size | 4000*1420*2500 mm |
| Engine model | YANMAR 3TNV80F |
| Bucket capacity | 0.068 m3 |
| Max digging depth | 2410 mm |
| Boom offset function | Side swing |
| Extendable working setup | Telescopic |
Data is for selection guidance. Confirm the final ordered configuration before purchase.
See it in action
Built to work. Watch it work.
Video playback connects to YouTube when you press play.
Make it your own
The right setup makes the difference.
Configuration options
Discuss engine requirements, emissions, controls, chassis and operator setup for your working conditions.
Discuss configuration ↗OEM & dealer support
Plan custom colors, branding, product media and spare parts for your dealership or equipment fleet.
Start a partnership ↗Before you order
What machines do you supply?
We supply mini excavators, skid steer loaders, remote control mowers and attachments for construction, agriculture, landscaping and material handling.
Can I customize the machine color and logo?
OEM color and logo options can be discussed for dealer and batch orders. Send the color reference, logo file and quantity for confirmation.
Do you supply machine attachments?
Yes. Available categories include buckets, augers, breakers, trenchers, forks, grapples, rippers, quick couplers and other work tools. Compatibility must be confirmed with the carrier.
Can you ship machines overseas?
Machines can be prepared for export packing and shipped by container or another suitable method according to the order and destination.
How can I get the latest price?
Send the machine model, quantity, destination country, required attachments and any engine or OEM requirements.
