Mini excavator / VantMech machinery

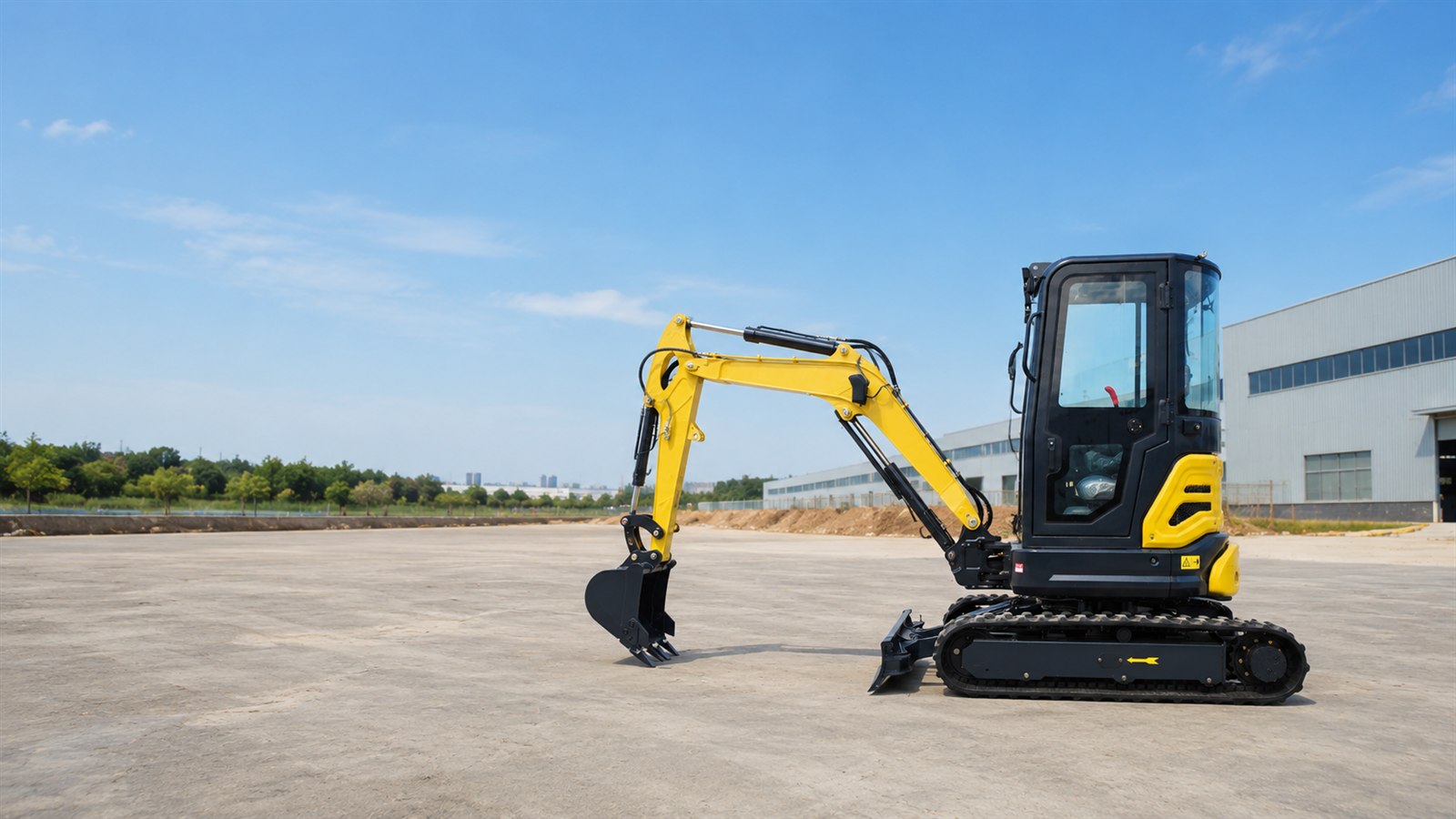

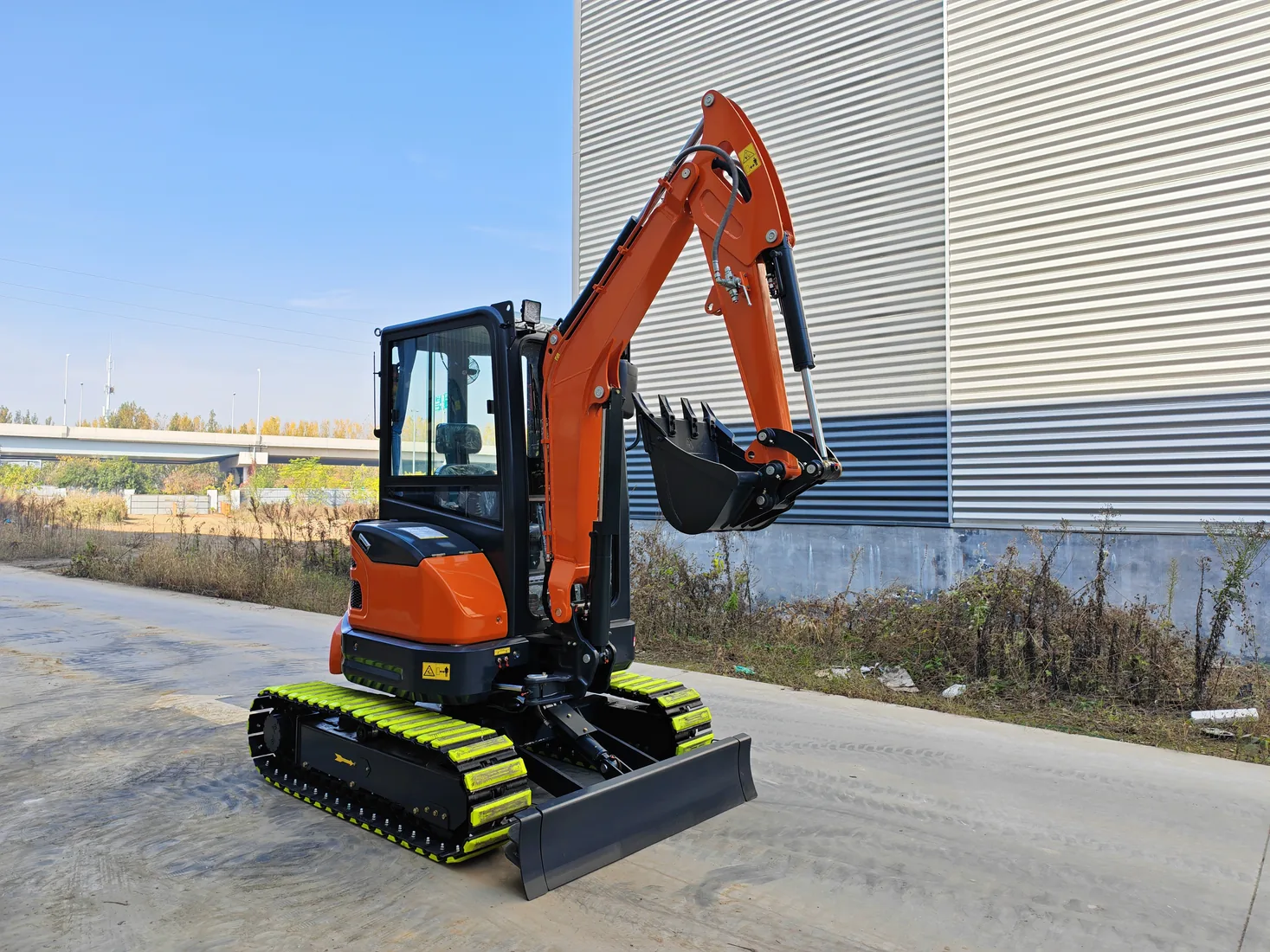

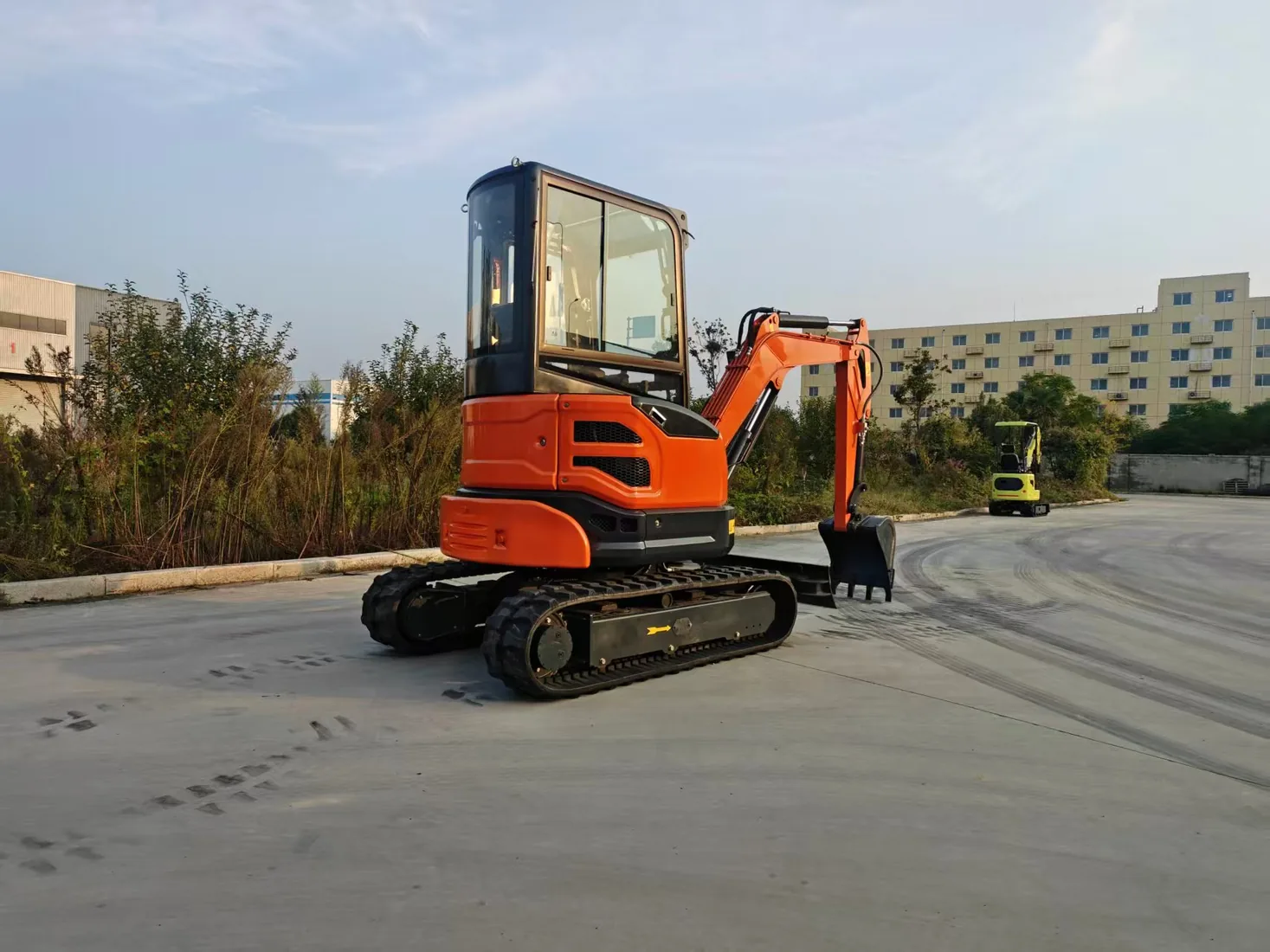

GW30 2.8 Ton Telescopic Compact Excavator
GW30 is a 2780 kg compact excavator with YANMAR 3TNV80F engine, CE, EURO 5 / EPA 4, side swing, telescopic arm, variable piston pump, full hydraulic load-sensitive valve, two-speed piston travel motor, piston swing motor, 20 kN bucket digging force and standard 200 kg auxiliary counterweight.
- YANMAR 3TNV80F engine
- Side swing and telescopic arm
- Variable piston pump and full hydraulic load-sensitive valve
- Piston travel and swing motors
- Stronger digging force
Final engine, dimensions and attachments are confirmed before quotation.
Compact machine. Real capability.
Built around the work you do.
GW30 is a 2780 kg compact excavator with YANMAR 3TNV80F engine, CE, EURO 5 / EPA 4, side swing, telescopic arm, variable piston pump, full hydraulic load-sensitive valve, two-speed piston travel motor, piston swing motor, 20 kN bucket digging force and standard 200 kg auxiliary counterweight.
Know your machine
Technical specifications
| Model | GW30 |
| Engine | YANMAR 3TNV80F |
| Engine type | Three-cylinder direct injection |
| Displacement | 1.267 L |
| Rated power | 15.2 kW / 2500 rpm |
| Compliance / emission | CE / EURO 5 / EPA 4 |
| Hydraulic pump | Variable piston pump |
| Hydraulic valve | Full hydraulic load-sensitive valve |
| Hydraulic pressure | 24.5 MPa |
| Hydraulic flow | 70 L/min |
| Travel motor | High / low speed piston motor |
| Swing motor | Piston motor |
| Machine weight | 2780 kg |
| Bucket capacity | 0.068 m³ |
| Arm digging force | 13.5 kN |
| Bucket digging force | 20 kN |
| Standard auxiliary counterweight | 200 kg |
| Max. digging height | 4370 mm |
| Max. dumping height | 3060 mm |
| Max. digging depth | 2590 mm |
| Max. digging radius on ground | 4640 mm |
| Max. digging radius | 4520 mm |
| Side swing angle | 50 deg right / 65 deg left |
| Track model | Rubber track 300*52.5*80 |
| Travel speed | 2.0 / 3.5 km/h |
| Traction force | 23 kN |
| Gradability | 30 deg |
| Max. rotation speed | 9.5 r/min |
| Overall length | 4100 mm |
| Overall width | 1370 / 1570 mm |
| Ground length | 1960 mm |
| Wooden box size | 4150*1470*1950 mm |
| With cabin box size | 4200*1470*2550 mm |
| Engine model | YANMAR 3TNV80F |
| Bucket capacity | 0.068 m3 |
| Max digging depth | 2590 mm |
| Boom offset function | Side swing |
| Extendable working setup | Telescopic |
Data is for selection guidance. Confirm the final ordered configuration before purchase.
