Skid steer loader / VantMech machinery

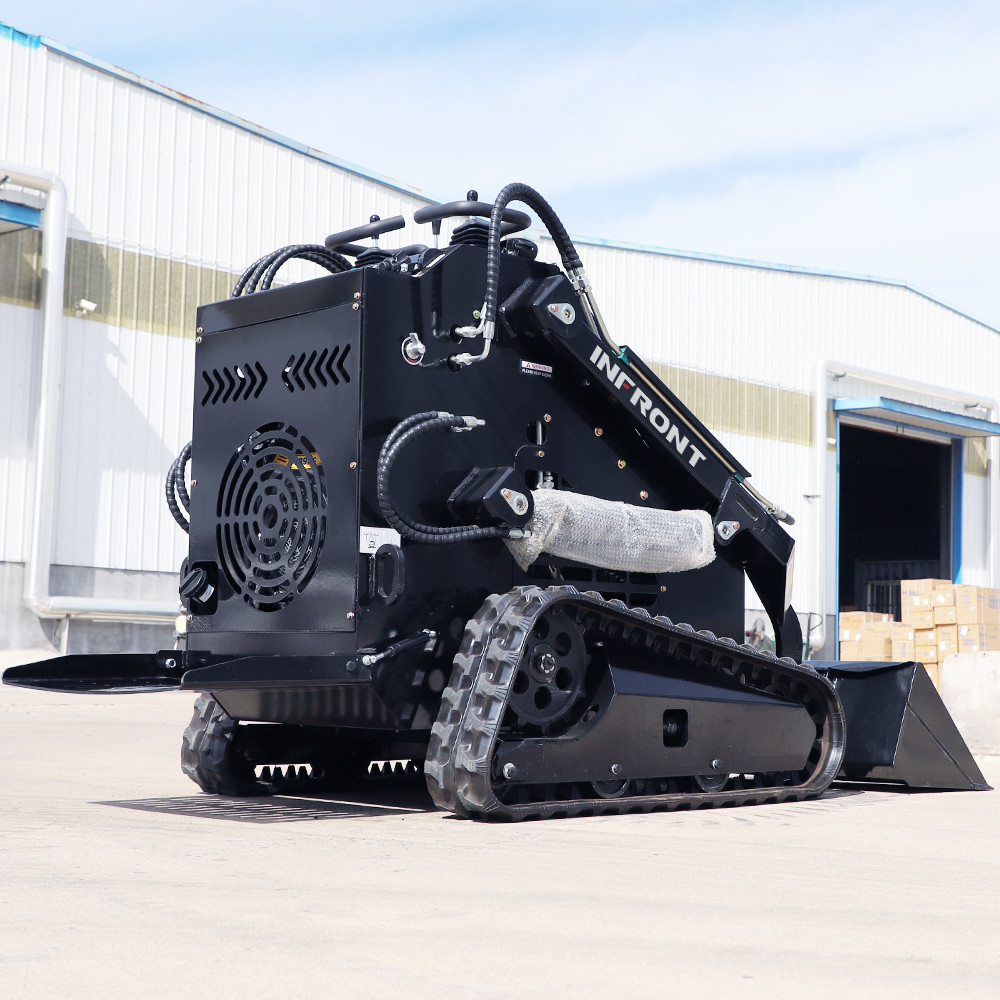

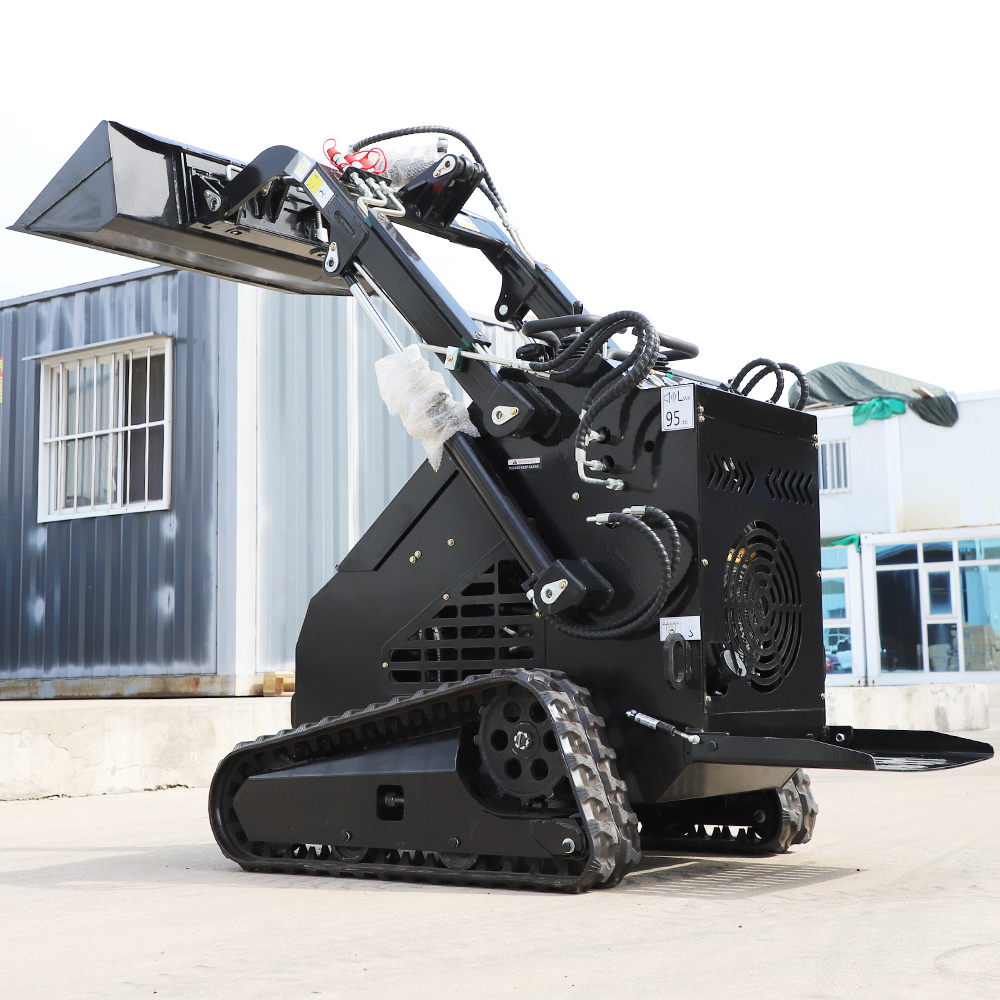

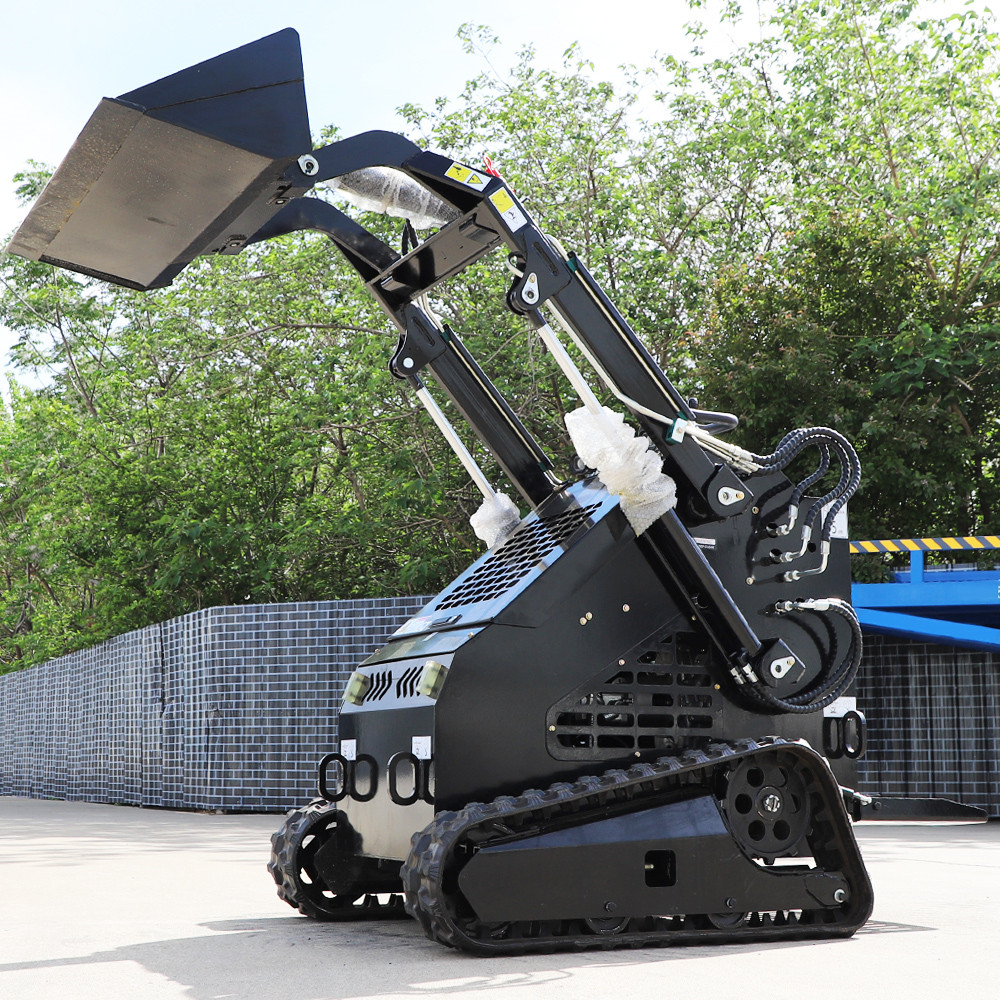

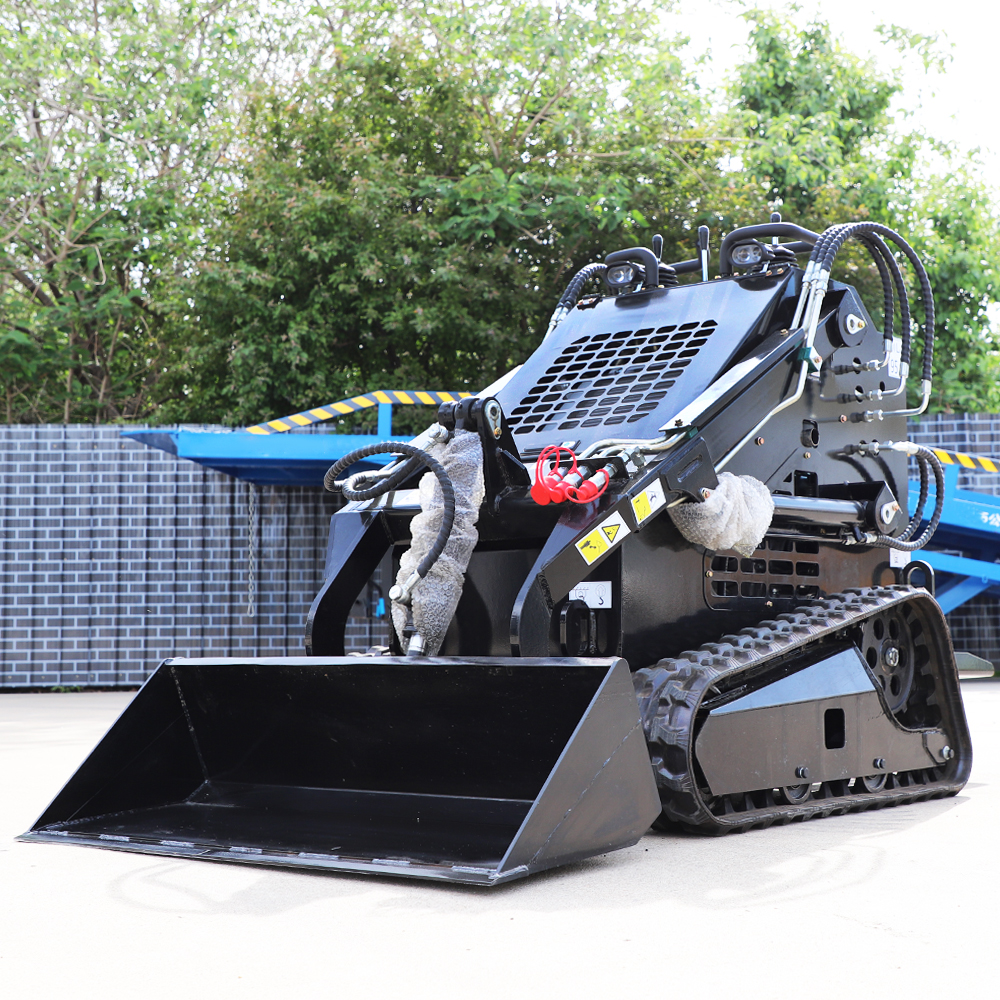

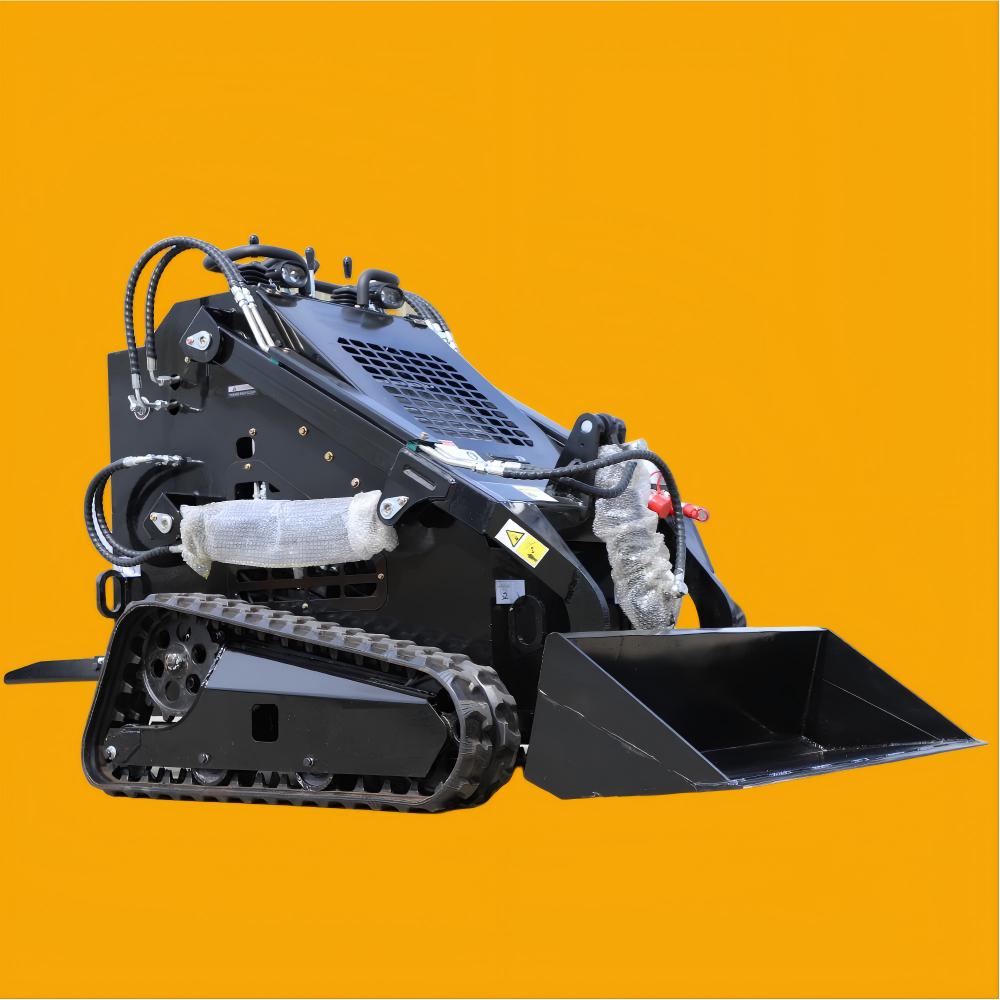

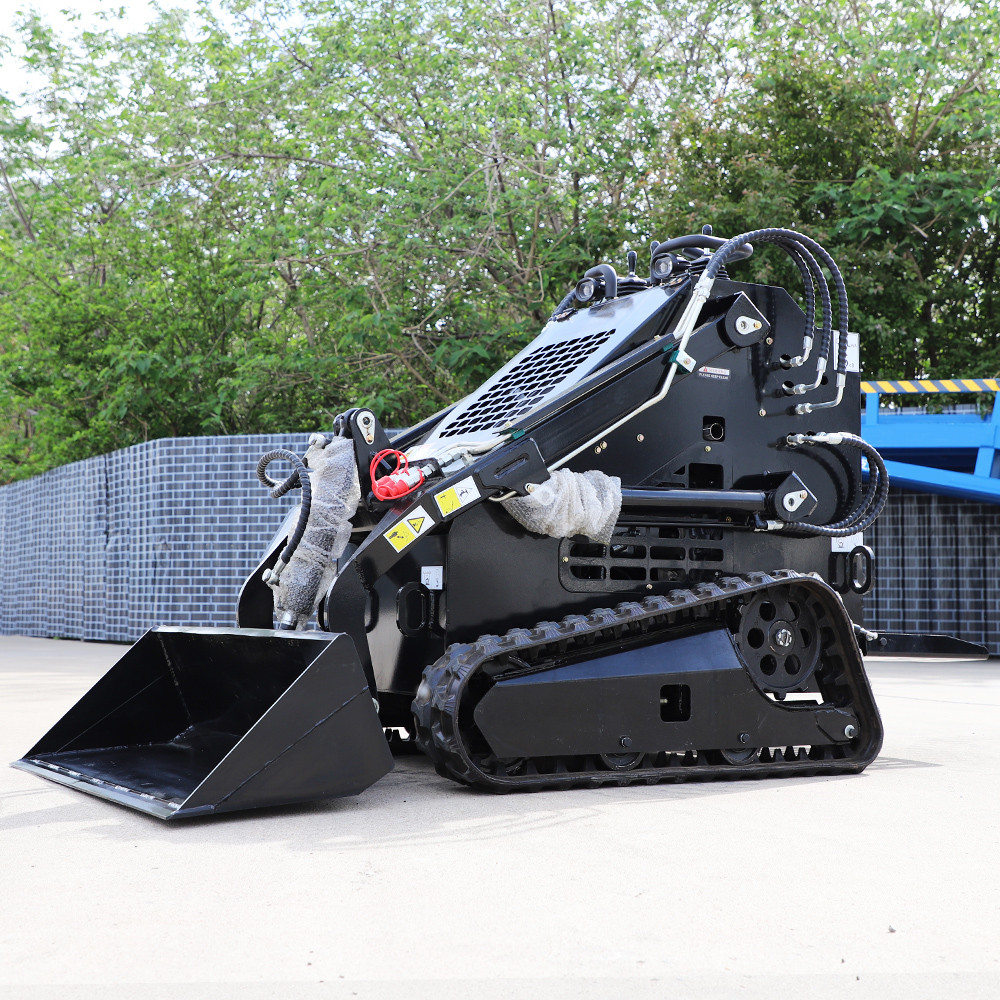

HX380 Tracked Mini Skid Steer Loader
A compact rubber-track mini skid steer with an 880 kg operating weight, 280 kg rated load and 810 mm overall width for landscaping, material handling and narrow-access work.
- Rubber-track configuration
- Compact 810 mm overall width
- 280 kg rated operating load
- 0.13 m³ bucket capacity
- 18.2 kW (23 hp) rated engine power
Final engine, dimensions and attachments are confirmed before quotation.
Compact machine. Real capability.
Built around the work you do.
The HX380 pairs a rubber-track undercarriage with a compact 810 mm overall width for landscaping, material handling and work areas with limited access. Its 0.13 m³ bucket and 280 kg rated operating load support everyday loading tasks. Check access widths and the final working configuration before ordering.
Know your machine
Technical specifications
| Model | HX380 |
| Track type | Rubber track |
| Operating weight | 880 kg / 1,940 lb |
| Operating load | 280 kg / 617 lb |
| Maximum lifting force | 458 kg / 1,009 lb |
| Bucket capacity | 0.13 m³ / 4.59 ft³ |
| Bucket width | 1,090 mm / 42.91 in |
| Travel speed | 0–5.5 km/h / approx. 3.5 mph |
| Rated engine power | 18.2 kW / 23 hp |
| Engine speed | 3,600 rpm |
| Noise level | Up to 95 dB |
| Hydraulic system pressure | 17 MPa |
| Maximum working height | 2,100 mm / 82.7 in |
| Maximum pin height | 1,880 mm / 74.01 in |
| Maximum dumping height | 1,480 mm / 58.26 in |
| Maximum dumping distance | 430 mm / 16.92 in |
| Maximum dumping angle | 30 deg |
| Bucket rollback angle on ground | 25 deg |
| Departure angle | 27 deg |
| Overall height | 1,270 mm / 50 in |
| Ground clearance | 110 mm / 4.33 in |
| Wheelbase | 760 mm / 29.92 in |
| Overall length without bucket | 1,782 mm / 70.15 in |
| Overall length with bucket | 2,285 mm / 89.96 in |
| Overall width | 810 mm / 31.88 in |
| Forward turning radius | 1,300 mm / 51.18 in |
| Length without bucket with folding pedal | 1,570 mm / 61.81 in |
| Boom raising time | 4 s |
| Bucket dumping time | 1.3 s |
| Boom lowering time | 3.2 s |
Data is for selection guidance. Confirm the final ordered configuration before purchase.
Make it your own
The right setup makes the difference.
Configuration options
Discuss engine requirements, emissions, controls, chassis and operator setup for your working conditions.
Discuss configuration ↗OEM & dealer support
Plan custom colors, branding, product media and spare parts for your dealership or equipment fleet.
Start a partnership ↗Before you order
What is the HX380 mini skid steer designed for?
The HX380 is suited to landscaping, material handling, property maintenance and other compact-site work. Check ground conditions, access widths and the attachment required for your application.
Is the HX380 a wheeled or tracked loader?
The supplied HX380 specification is for a rubber-track configuration.
What are the HX380 operating load and bucket capacity?
The supplied data lists a 280 kg operating load, a 458 kg maximum lifting force and a 0.13 m³ bucket capacity. Confirm the working load for the selected configuration and conditions.
What engine is listed for the HX380?
The supplied specification lists 18.2 kW (23 hp) rated power at 3,600 rpm. Confirm the final engine package before ordering.
Can attachments be fitted to the HX380?
Attachment options depend on the mounting interface, hydraulic flow and pressure. Share the tool model and intended work so compatibility can be checked before quotation.
