Skid steer loader / VantMech machinery

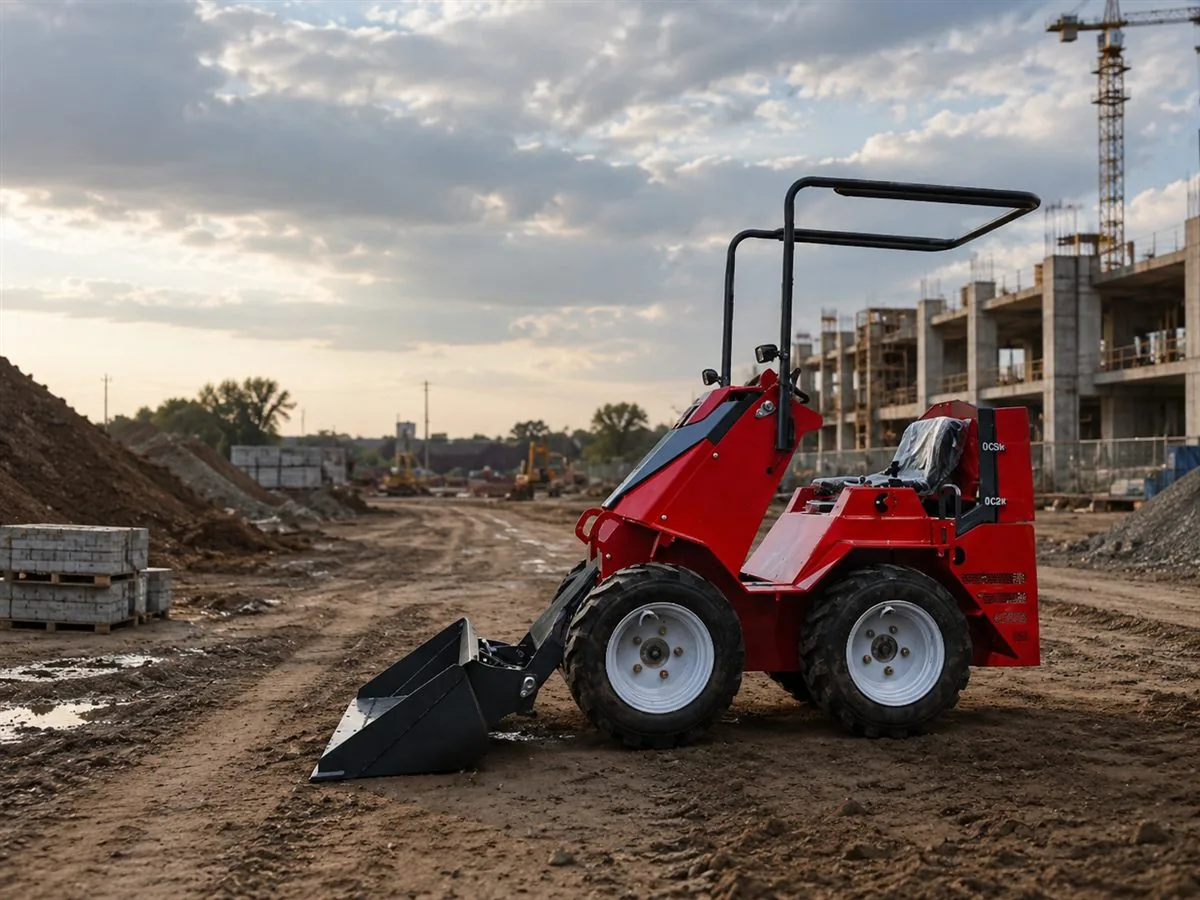

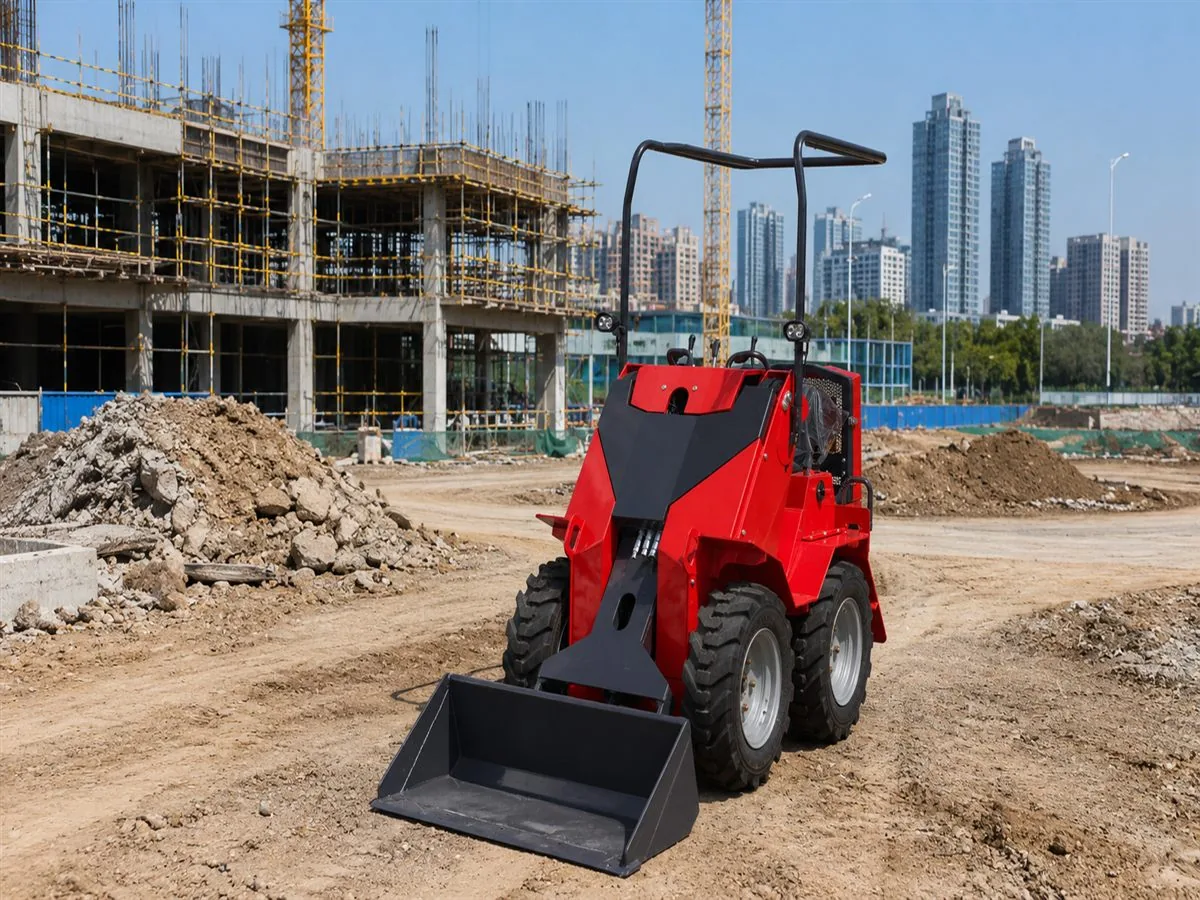

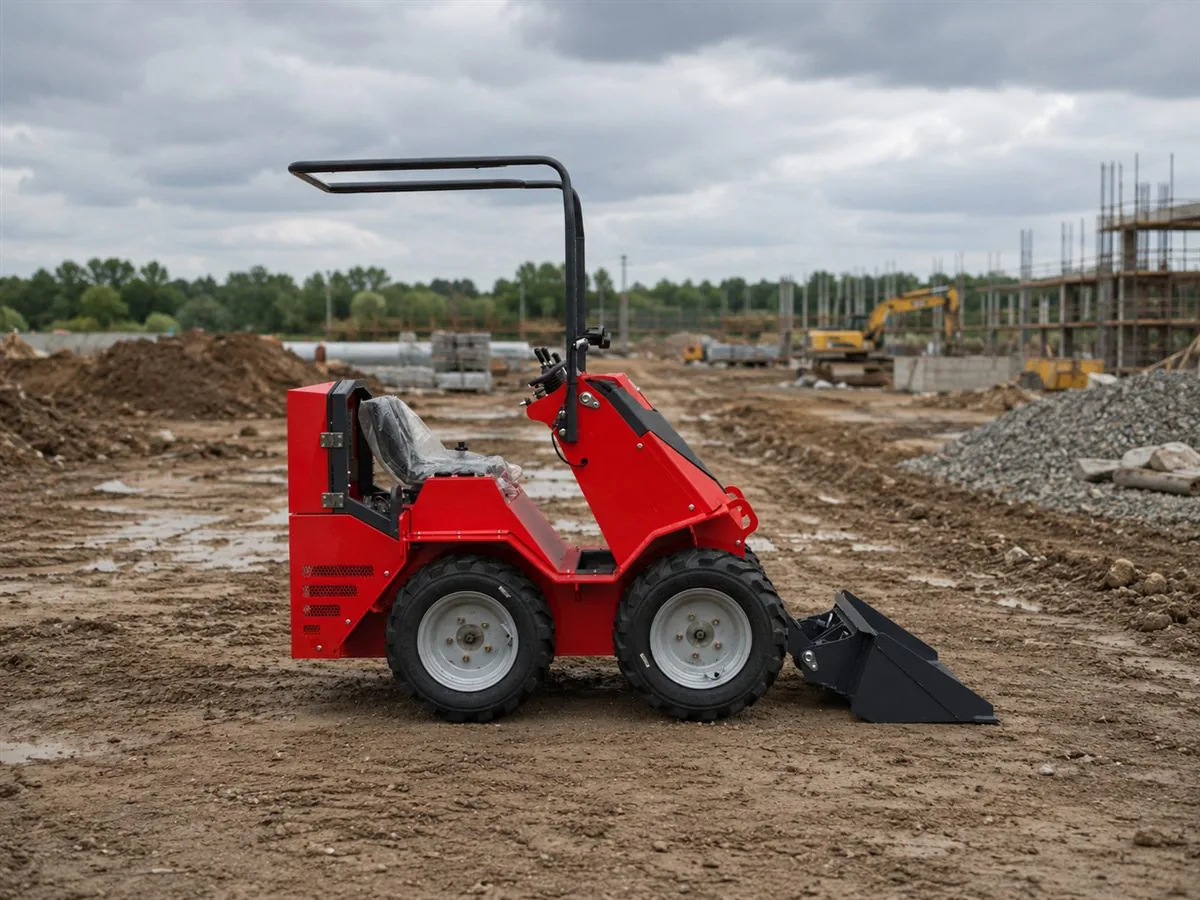

S390 Ride-On Mini Skid Steer Loader
A 1050 kg ride-on wheel loader with 200 kg rated load for construction yards, material handling and frequently changing work in narrow areas.
- Machine configuration confirmed for your order
- Compatible attachment options
- Export packing and spare-parts support
Final engine, dimensions and attachments are confirmed before quotation.
Compact machine. Real capability.
Built around the work you do.
Compare S390 ride-on mini skid steer loader images, the 200 kg rated load and 1050 mm bucket for construction yards, material handling and narrow jobsites. Ask for the latest S390 price, attachments and OEM configuration.
Know your machine
Technical specifications
| Model | S390 |
| Operating weight | 1050 kg |
| Bucket capacity | 0.12 m³ |
| Climbing ability | 25 degree |
| Maximum breakout force | 3.5 kN |
| Rated load | 200 kg |
| Maximum load | 300 kg |
| Travel speed | 0-6 km/h |
| Three-item working cycle | 9 s |
| Bucket width | 1050 mm |
| Maximum loading height | 1830 mm |
| Maximum dumping height | 1470 mm |
| Maximum operating height | 2620 mm |
| Height to bucket pin | 2000 mm |
| Bucket dump angle at maximum height | 63° |
| Minimum machine height | 1250 mm |
| Tail length | 220 mm |
| Ground clearance | 180 mm |
| Dumping distance | 600 mm |
| Overall dimensions | 2400 × 1050 × 1250 mm |
| Length including bucket | 2400 mm |
| Length excluding bucket | 1900 mm |
| Wheelbase | 800 mm |
| Tire model | 23 × 8.5-12 |
| Working system pressure | 17 bar |
| Power options listed in brochure | Lithium electric / KOOP / Rato / Briggs & Stratton |
| Listed models | Lithium iron phosphate / 192F / R420 / XR13.5 |
| Listed rated power | 6 kW, 72 V, 125 Ah / 7.5 kW / 8.6 kW / 9.9 kW |
| Cylinder | 1 for combustion-engine options |
| Intake method | Natural aspiration |
| Emission standard | EPA / EURO 5; confirm documents for selected power option |
| Fuel tank capacity | 5 L for combustion-engine configurations |
| Chassis type | Ride-on wheel loader / Ride-on tracked loader with rubber tracks |
| Best ground condition | Hard ground, compacted soil, paved yards / Muddy ground, soft soil, mixed terrain |
| Main buyer priority | Wheel mobility and movement on firm ground / Stable traction, better grip and soft-ground confidence |
| Typical application | Paved yards, compacted construction sites and material handling / Farm use, muddy sites, mixed-terrain construction |
| Best sales angle | Firm-ground wheel mobility / Rubber-track traction and longer ground contact |
Data is for selection guidance. Confirm the final ordered configuration before purchase.
See it in action
Built to work. Watch it work.
Video playback connects to YouTube when you press play.
Make it your own
The right setup makes the difference.
Configuration options
Discuss engine requirements, emissions, controls, chassis and operator setup for your working conditions.
Discuss configuration ↗OEM & dealer support
Plan custom colors, branding, product media and spare parts for your dealership or equipment fleet.
Start a partnership ↗Before you order
What is the S390 mini skid steer loader best for?
The S390 is suited to compact construction sites, material yards, livestock areas, property work and rental fleets that need ride-on controls with wheel traction.
Is the S390 a wheel or tracked mini skid steer loader?
The S390 is the wheel version. For softer ground, ask us to confirm currently available tracked models and compare their configuration and specifications.
Is the S390 a ride-on mini skid steer loader?
Yes. The S390 uses an operator seat and ride-on controls. Confirm the selected power option and attachment package before ordering.
What attachments can I use with the S390?
Bucket, forks, auger, sweeper, trencher and other tools can be discussed after confirming the mounting interface and hydraulic requirements.
Which power options are listed for the S390?
The brochure lists lithium electric, KOOP, Rato and Briggs & Stratton options. Final power, emission documents and market suitability must be confirmed in the quotation.
How do I get the S390 price?
Send your destination, quantity, attachments, power preference and OEM requirements for a matched quotation.
