Skid steer loader / VantMech machinery
T490 Ride-On Mini Skid Steer Loader
A 1200 kg ride-on tracked loader with 250 kg rated load for construction yards, material handling and frequently changing work in narrow areas.
- Machine configuration confirmed for your order
- Compatible attachment options
- Export packing and spare-parts support
Final engine, dimensions and attachments are confirmed before quotation.
Compact machine. Real capability.
Built around the work you do.

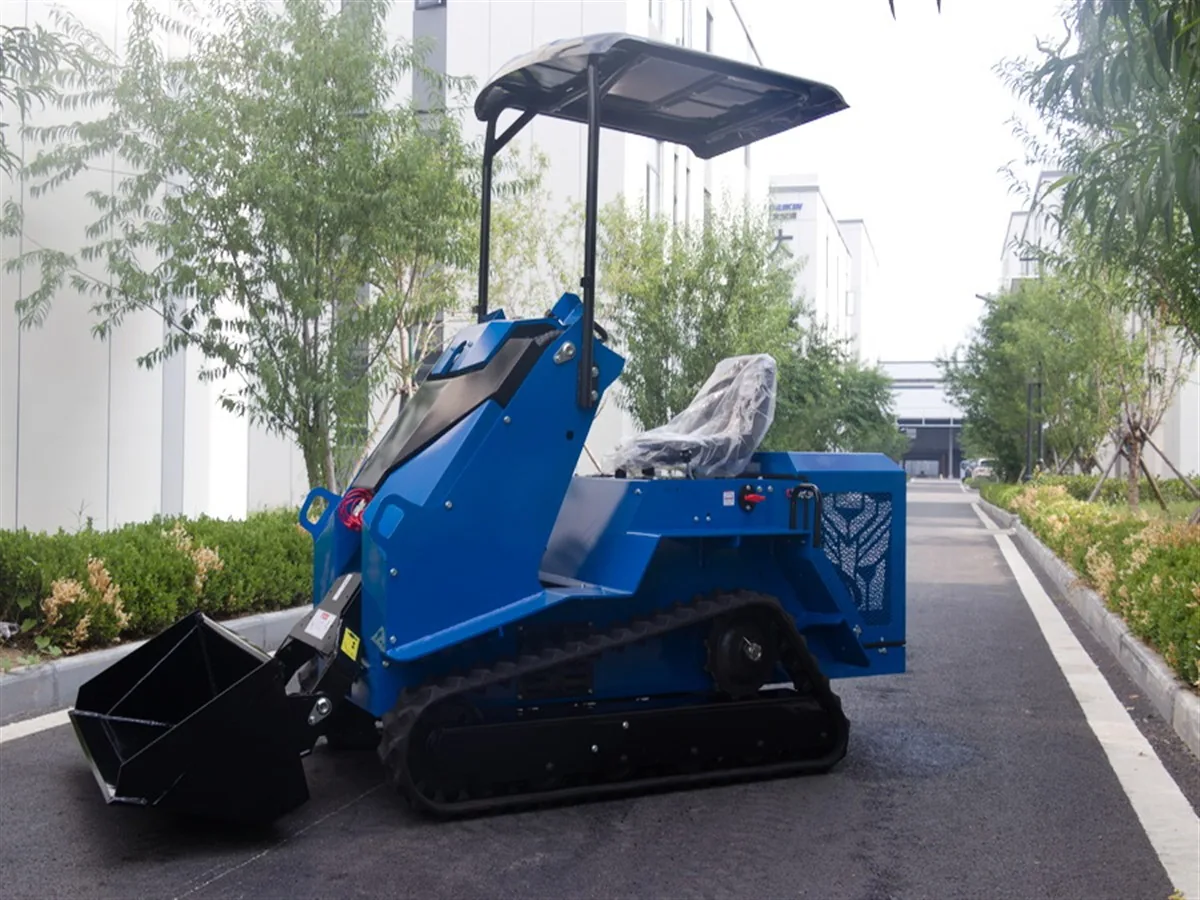

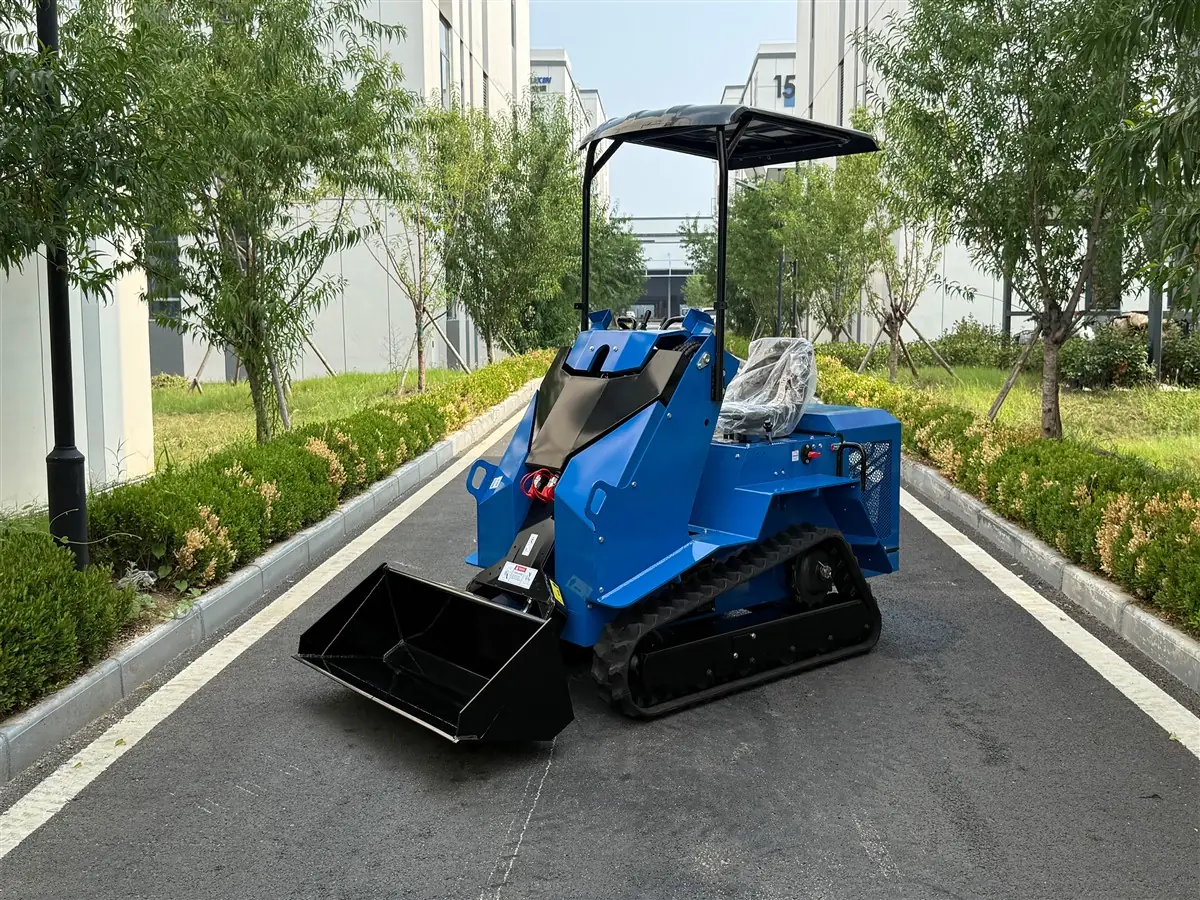

Compare T490 ride-on mini skid steer loader images, the 250 kg rated load and 1050 mm bucket for construction yards, material handling and narrow jobsites. Ask for the latest T490 price, attachments and OEM configuration.
Know your machine
Technical specifications
| Model | T490 |
| Operating weight | 1200 kg |
| Bucket capacity | 0.12 m³ |
| Climbing ability | 25 degree |
| Maximum breakout force | 4.5 kN |
| Rated load | 250 kg |
| Maximum load | 350 kg |
| Travel speed | 0-6 km/h |
| Three-item working cycle | 9 s |
| Bucket width | 1050 mm |
| Maximum loading height | 1740 mm |
| Maximum dumping height | 1429 mm |
| Maximum operating height | 2574 mm |
| Height to bucket pin | 1933 mm |
| Bucket dump angle at maximum height | 63° |
| Minimum machine height | 1300 mm |
| Tail length | 500 mm |
| Ground clearance | 180 mm |
| Dumping distance | 595 mm |
| Overall dimensions | 2644 × 1089 × 1264 mm |
| Length including bucket | 2700 mm |
| Length excluding bucket | 2300 mm |
| Track base | 925 mm |
| Undercarriage | Rubber-track chassis |
| Working system pressure | 17–21 bar |
| Optional hydraulic package | Three pumps, three valves and dual hydraulic outputs |
| RATO engine option | R740 |
| KOOP engine option | 292 |
| Briggs & Stratton engine option | Vanguard 23 |
| YANMAR engine option | 3TNV80F |
| KUBOTA engine option | D1105 |
| Fuel tank capacity | 10 L |
| Chassis type | Ride-on wheel loader / Ride-on tracked loader with rubber tracks |
| Best ground condition | Hard ground, compacted soil, paved yards / Muddy ground, soft soil, mixed terrain |
| Main buyer priority | Wheel mobility and movement on firm ground / Stable traction, better grip and soft-ground confidence |
| Typical application | Paved yards, compacted construction sites and material handling / Farm use, muddy sites, mixed-terrain construction |
| Best sales angle | Firm-ground wheel mobility / Rubber-track traction and longer ground contact |
Data is for selection guidance. Confirm the final ordered configuration before purchase.
See it in action
Built to work. Watch it work.
Video playback connects to YouTube when you press play.
Make it your own
The right setup makes the difference.
Configuration options
Discuss engine requirements, emissions, controls, chassis and operator setup for your working conditions.
Discuss configuration ↗OEM & dealer support
Plan custom colors, branding, product media and spare parts for your dealership or equipment fleet.
Start a partnership ↗Before you order
What is the T490 mini skid steer loader best for?
The T490 is suited to compact construction sites, material yards, livestock areas, property work and rental fleets that need ride-on controls with tracked traction.
Is the T490 a wheel or tracked mini skid steer loader?
The T490 is the tracked version. For firm ground, ask us to confirm currently available wheel models and compare their configuration and specifications.
Is the T490 a ride-on mini skid steer loader?
Yes. The T490 uses an operator seat and ride-on controls. Confirm the selected engine option and attachment package before ordering.
What attachments can I use with the T490?
Bucket, forks, auger, sweeper, trencher and other tools can be discussed after confirming the mounting interface and hydraulic requirements.
Which engine options are available for the T490?
Available engine options include RATO R740, KOOP 292, Briggs & Stratton Vanguard 23, YANMAR 3TNV80F and KUBOTA D1105. Confirm the selected engine in the quotation.
How do I get the T490 price?
Send your destination, quantity, attachments, engine preference and OEM requirements for a matched quotation.
