Skid steer loader / VantMech machinery

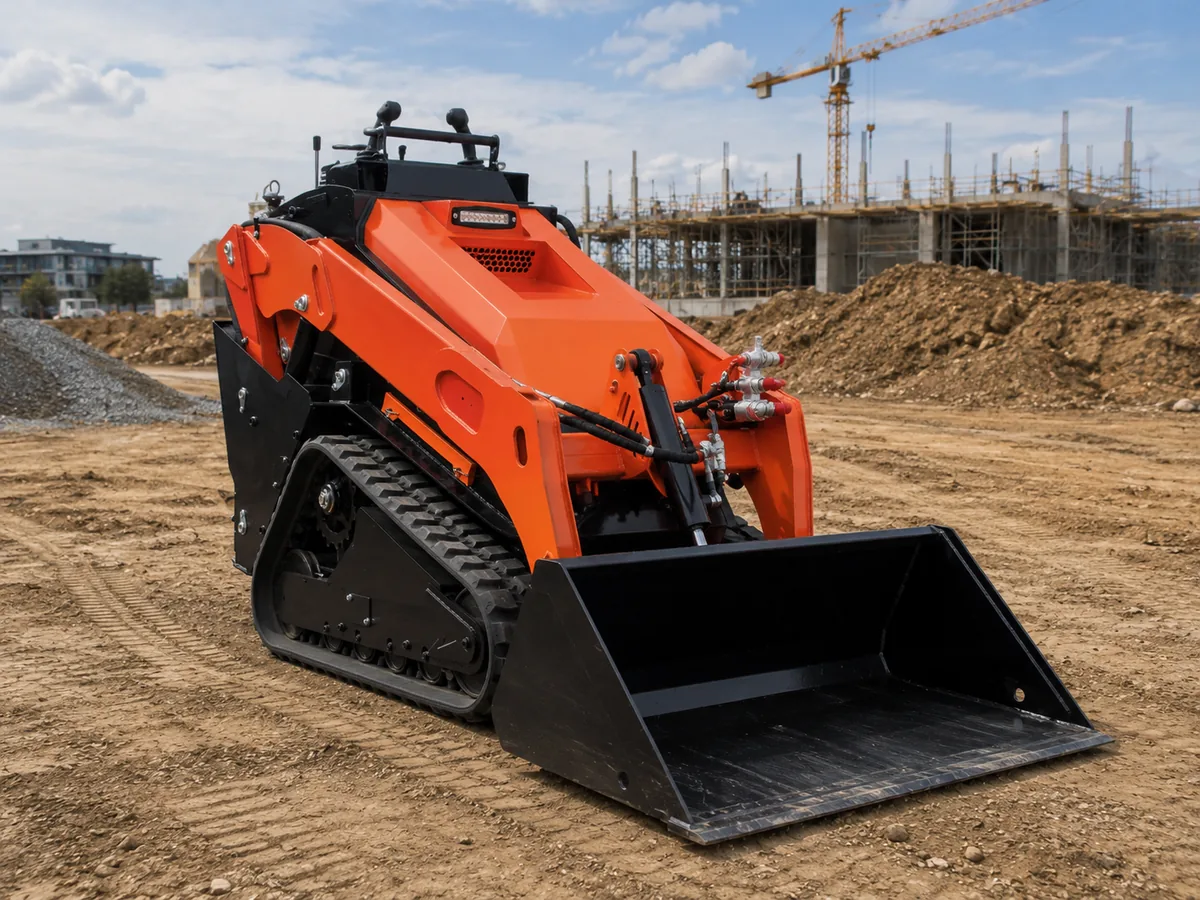

V1000 Tracked Skid Steer Loader

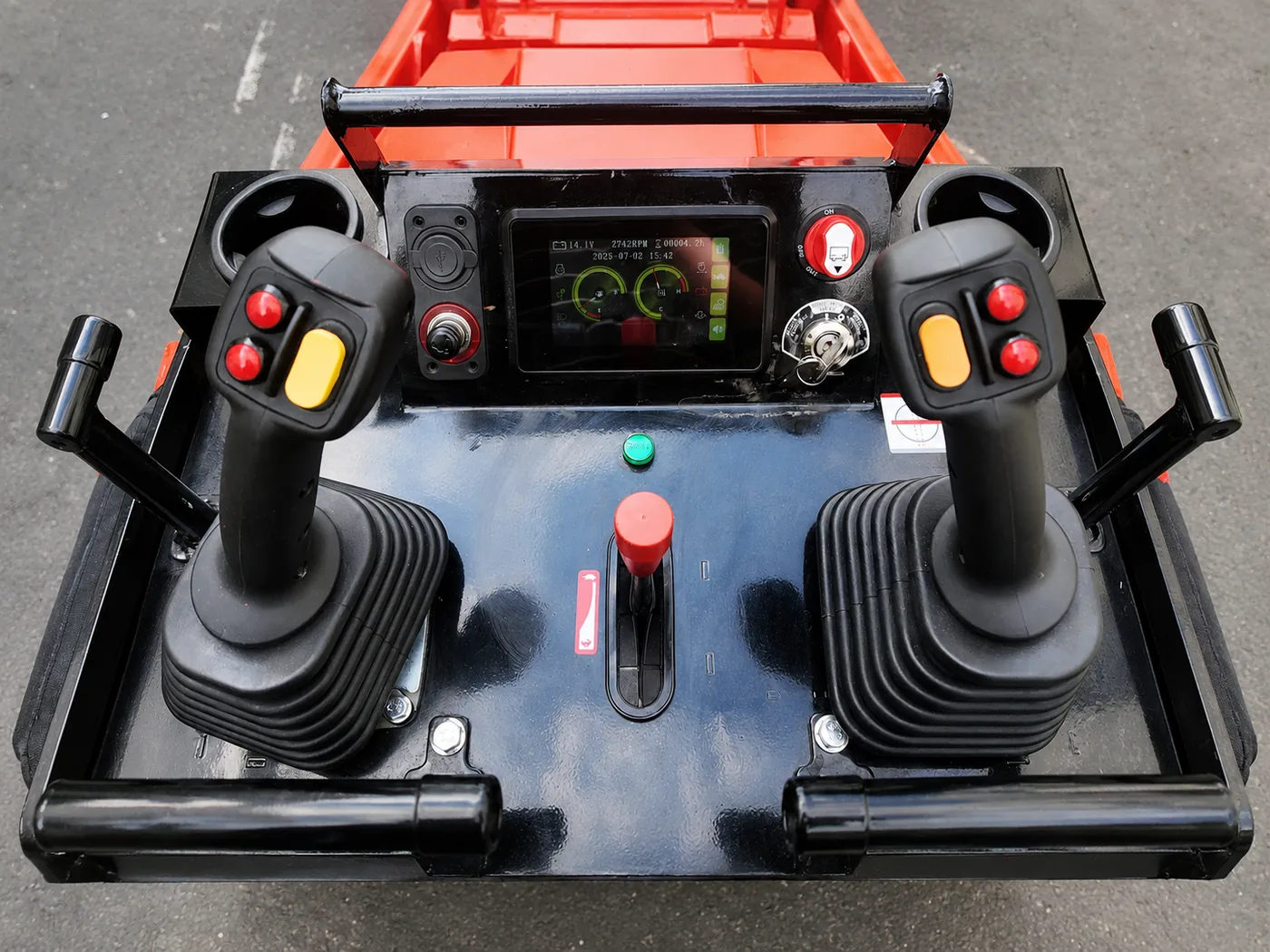

A 500 kg rated-load mini tracked loader with dual pilot controls, closed-loop hydraulic drive and a configurable undercarriage for demanding overseas applications.
- Machine configuration confirmed for your order
- Compatible attachment options
- Export packing and spare-parts support
Final engine, dimensions and attachments are confirmed before quotation.
Compact machine. Real capability.
Built around the work you do.
Steel-track configuration available for abrasive ground, demolition areas and higher-wear applications.
Know your machine
Technical specifications
| Operating weight | 1417 kg |
| Bucket capacity | 0.19 m³ |
| Rated load | 500 kg |
| Maximum load | 650 kg |
| Breakout force | 4.5 kN |
| Travel speed | 0-5.5 km/h |
| Working pressure | 19.5 MPa |
| Working cycle | 9 s |
| Bucket width | 1235 mm |
| Maximum loading height | 1740 mm |
| Maximum dumping height | 1522 mm |
| Maximum operating height | 2794 mm |
| Height to bucket pin | 2140 mm |
| Ground clearance | 200 mm |
| Dumping distance | 498 mm |
| Climbing ability | 25 degree |
| Overall dimensions | 2691 x 1235 x 1548 mm |
| Length with bucket | 2691 mm |
| Length without bucket | 1981 mm |
| Track contact length | 1026 mm |
| Brochure track model | 230 x 72 x 45 |
| Standard track width | 230 mm |
| Fuel tank | 40 L |
| YANMAR engine | 3TNV80 |
| KUBOTA engine | D1105 |
| Perkins engine | 403D |
| Drive pump | Hansa closed-loop tandem pump |
| Work pump | Gear pump |
| Travel motors | Piston type |
| Track option | Rubber / steel |
| Bucket capacity | 0.19 m3 |
| Track contact | 1026 mm |
Data is for selection guidance. Confirm the final ordered configuration before purchase.
Make it your own
The right setup makes the difference.
Configuration options
Discuss engine requirements, emissions, controls, chassis and operator setup for your working conditions.
Discuss configuration ↗OEM & dealer support
Plan custom colors, branding, product media and spare parts for your dealership or equipment fleet.
Start a partnership ↗Before you order
What work is the V1000 designed for?
The V1000 is intended for farms, landscaping, construction, road maintenance, material handling and attachment-based work on changing ground.
Which engines are available?
Confirmed options are YANMAR 3TNV80, KUBOTA D1105 and Perkins 403D. Final power and certification documents depend on the selected configuration.
Does the V1000 use a closed-loop hydraulic system?
Yes. The confirmed configuration combines a Hansa closed-loop tandem pump, a gear pump and piston travel motors.
Can the V1000 use steel tracks?
Yes. The standard configuration uses 230 mm rubber tracks, while steel tracks are available for abrasive or higher-wear applications.
Which attachments can be matched?
Buckets, forks, augers, breakers, sweepers, trenchers, mowers, grapples and blades can be discussed after confirming interface and hydraulic requirements.
How do I request the V1000 price?
Send the engine, track type, attachments, quantity and destination country for a matched product and shipping quotation.
